Product Features

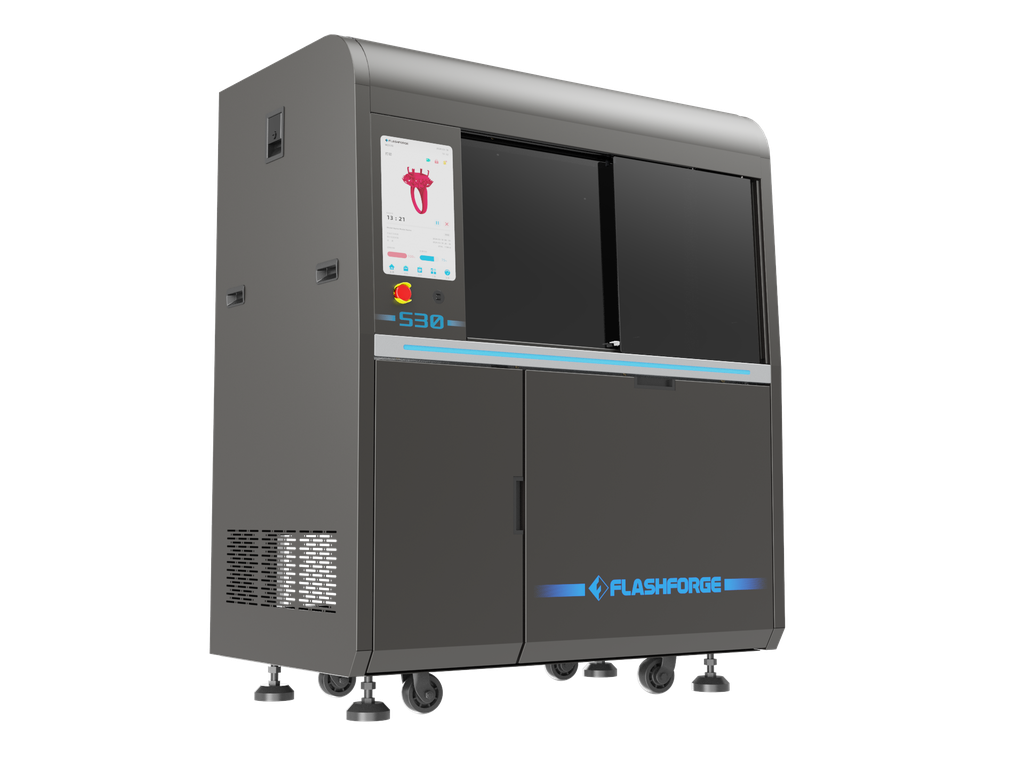

The WaxJet 530 is a next-generation wax 3D printer for jewellery casting, engineered to meet the rigorous demands of industrial-scale production. Building on the proven reliability of the WaxJet 510, this advanced model boosts printing speeds, improves efficiency, and integrates cutting-edge automation features. These enhancements enable jewellers to streamline their casting workflows while maintaining exceptional precision and surface quality, making the WaxJet 530 the perfect choice for high-volume jewellery manufacturing where speed and accuracy are paramount.
Standing out with its innovative triple synchronized printheads, the WaxJet 530 achieves print speeds up to three times faster than its predecessor, dramatically reducing production times without compromising detail or finish. This impressive performance upgrade ensures jewellers can produce complex wax patterns with unparalleled speed and consistency, revolutionizing the way intricate jewellery designs are brought to life and empowering artisans to meet growing market demands with confidence.
Design features
- Triple Synchronized Printheads – Achieves up to 3x faster print speeds for high-volume wax pattern production.
- Automatic Printhead Cleaning System – Keeps printheads clear, reducing downtime and ensuring consistent performance.
- 2MP Integrated Camera – Enables real-time print monitoring and remote inspection, helping identify issues early and improve workflow efficiency.
- High-Resolution Printing – Captures fine details with smooth surfaces, essential for complex jewellery designs.
- Rigid, Reinforced Frame – Minimizes vibrations during high-speed printing, maintaining excellent dimensional accuracy.
- Large Build Volume – Supports batch printing of multiple wax patterns to maximize productivity.
- Advanced Motion Control System – Delivers precise, stable movement for reliable, high-quality prints.
- Intuitive Touchscreen Interface – Simplifies operation with easy controls, file management, and live print status updates.
Machine Specifications
Printing Technology | MultiJet Printing (MJP) |
Build Volume | 289*208*100mm |
Printing Mode | XHD: 2900*2900*1700 dpi; layer thickness: 15μm |
Printhead | 3 |
Dimensional Accuracy | ±0.04mm/20mm |
Power Supply | AC220-240V，50Hz，4KW |
Equipment Dimensions | 1352*775*1600mm |
Net Weight | 480kg |
Gross Weight | 630kg |
Package Size | 1530*900*1837mm |
Software & Connectivity :
| Slicing Software | WaxJetPrint |
|---|---|
| Supported File Format | .stl/.slc |
| Email Notification | √ |
| Hard Disk Capacity | 500GB |
| Connectivity | Network 10/100/1000 Ethernet/USB |
| Supported Operating System | Windows 7 / Windows 10 (64bit) |
| Package Size | 1530*900*1837mm |
Material Specification :
Material Name | FFWJ1200 | FFMS3200 |
Material Type | Part wax | Support wax |
Net Weight | 1.5kg/bottle | 1.6kg/bottle |
Composition | 100% Wax | Wax support wax |
Color | Red | White |
Density@95℃(liquid) | 0.79g/cm³ | 0.85g/cm³ |
Melting Point | 68°C | 55°C |
Softening Point | 63°C | |
Volumetric Shrinkage | 1.10% | |
Linear Shrinkage | 0.70% | |
Ash Content | <0.01% | |
Description | High-precision casting wax | Hands-free dissolvable support wax |
